2007 YAMAHA XVS 1100 A DragStar Classic
Motorcycle pictures, review and specifications

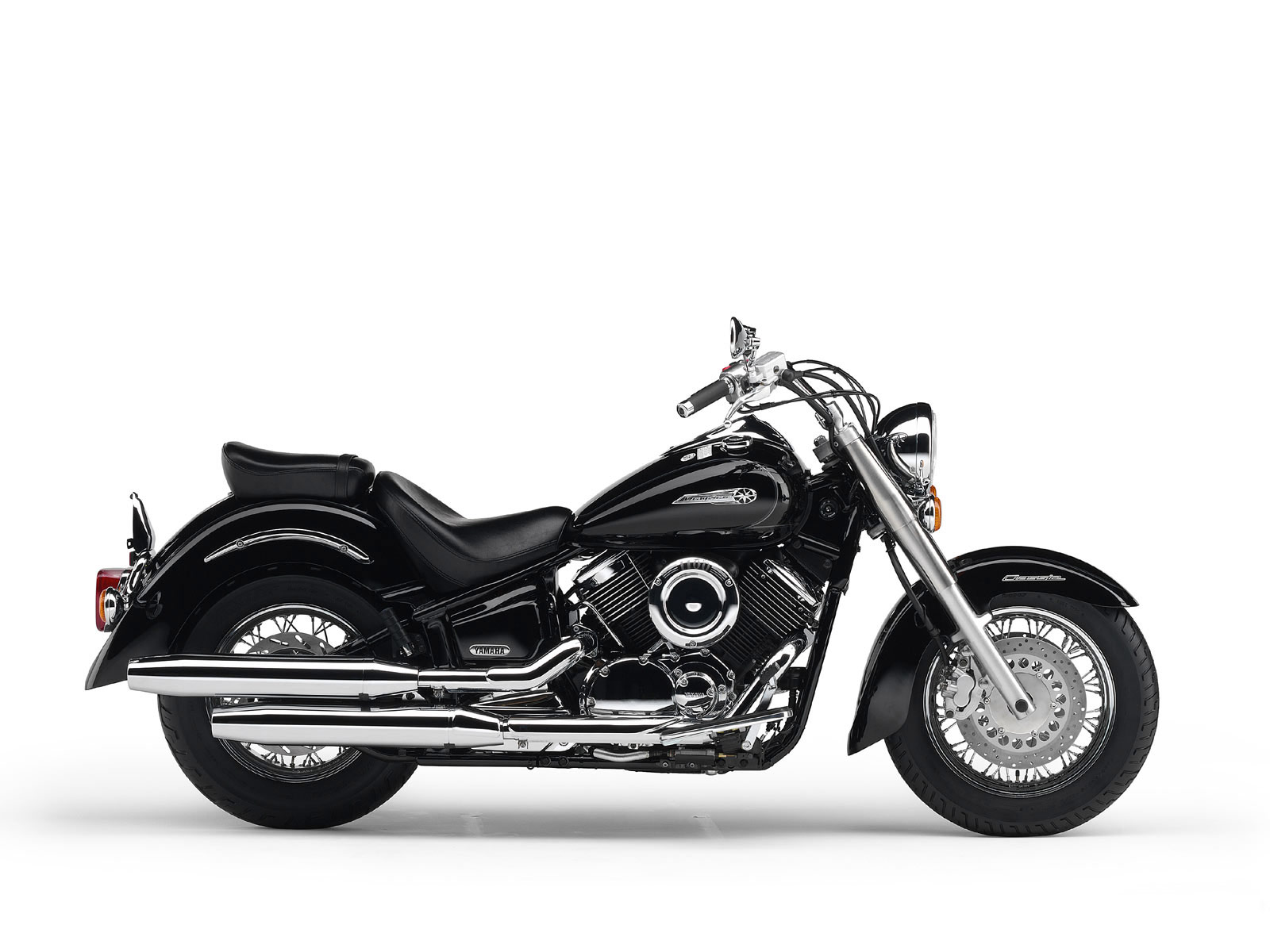

2007 YAMAHA XVS 1100 A DragStar Classic
Click Thumbnail to download (size 1600 x 1200 pixels)
Click Thumbnail to download (size 1600 x 1200 pixels)
Specifications
Model: Yamaha XVS 1100 A DragStar Classic
Year: 2007
Category: Custom / cruiser
Rating: 73.2 out of 100.
Engine and transmission
Displacement: 1063.00 ccm (64.86 cubic inches)
Engine type: V2, four-stroke
Power: 61.68 HP (45.0 kW)) @ 5750 RPM
Torque: 85.00 Nm (8.7 kgf-m or 62.7 ft.lbs) @ 8700 RPM
Compression: 8.3:1
Bore x stroke: 95.0 x 75.0 mm (3.7 x 3.0 inches)
Fuel system: Carburettor. Mikuni BDS37/2
Fuel control: SOHC
Ignition: TCI
Lubrication system: Wet sump
Cooling system: Air
Gearbox: 5-speed
Transmission type,
final drive: Shaft drive (cardan)
Clutch: Wet, multiple disc
Chassis, suspension, brakes and wheels
Frame type: -
Front suspension: Telescopic forks
Front suspension travel: 140 mm (5.5 inches)
Rear suspension: Swingarm link suspension
Rear suspension travel: 200 mm (7.9 inches)
Front tyre dimensions: 130/90-(16
Rear tyre dimensions: 170/80-(15
Front brakes: Double disc
Front brakes diameter: 298 mm (11.7 inches)
Rear brakes: Single disc
Rear brakes diameter: 282 mm (11.1 inches)
Physical measures and capacities
Dry weight: 272.0 kg (599.7 pounds)
Power/weight ratio: 0.2268 HP/kg
Seat height: 710 mm (28.0 inches) If adjustable, lowest setting.
Overall height: 1,095 mm (43.1 inches)
Overall length: 2,460 mm (96.9 inches)
Overall width: 945 mm (37.2 inches)
Ground clearance: 145 mm (5.7 inches)
Wheelbase: 1,645 mm (64.8 inches)
Fuel capacity: 17.00 litres (4.49 gallons)
Other specifications
Starter: Electric
Comments: For the European market.
Model: Yamaha XVS 1100 A DragStar Classic
Year: 2007
Category: Custom / cruiser
Rating: 73.2 out of 100.
Engine and transmission
Displacement: 1063.00 ccm (64.86 cubic inches)
Engine type: V2, four-stroke
Power: 61.68 HP (45.0 kW)) @ 5750 RPM
Torque: 85.00 Nm (8.7 kgf-m or 62.7 ft.lbs) @ 8700 RPM
Compression: 8.3:1
Bore x stroke: 95.0 x 75.0 mm (3.7 x 3.0 inches)
Fuel system: Carburettor. Mikuni BDS37/2
Fuel control: SOHC
Ignition: TCI
Lubrication system: Wet sump
Cooling system: Air
Gearbox: 5-speed
Transmission type,
final drive: Shaft drive (cardan)
Clutch: Wet, multiple disc
Chassis, suspension, brakes and wheels
Frame type: -
Front suspension: Telescopic forks
Front suspension travel: 140 mm (5.5 inches)
Rear suspension: Swingarm link suspension
Rear suspension travel: 200 mm (7.9 inches)
Front tyre dimensions: 130/90-(16
Rear tyre dimensions: 170/80-(15
Front brakes: Double disc
Front brakes diameter: 298 mm (11.7 inches)
Rear brakes: Single disc
Rear brakes diameter: 282 mm (11.1 inches)
Physical measures and capacities
Dry weight: 272.0 kg (599.7 pounds)
Power/weight ratio: 0.2268 HP/kg
Seat height: 710 mm (28.0 inches) If adjustable, lowest setting.
Overall height: 1,095 mm (43.1 inches)
Overall length: 2,460 mm (96.9 inches)
Overall width: 945 mm (37.2 inches)
Ground clearance: 145 mm (5.7 inches)
Wheelbase: 1,645 mm (64.8 inches)
Fuel capacity: 17.00 litres (4.49 gallons)
Other specifications
Starter: Electric
Comments: For the European market.
.
