Saturday, June 29, 2013

2013 Yamaha pictures Raptor 350 ATV review and specifications

2013 Yamaha Raptor 350
ATV pictures, review and specifications

Proven performance and durability.

The Raptor 350 boasts the features and performance coveted by all sport ATV riders, including lightweight, nimble handling, six-speed transmission with reverse and more.

Yamaha pictures 2013 Raptor 350 ATV. 480x360 pixels Yamaha pictures 2013 Raptor 350 ATV 2 Yamaha pictures 2013 Raptor 350 ATV 1
Yamaha pictures 2013 Raptor 350 ATV 4


2013 Yamaha Raptor 350
USA Specifications
USA MSRP: $5,599 (White w/Graphics Kit) Available from June 2012
Engine
Type 348cc air-cooled 4-stroke; SOHC, 2 valves
Bore x Stroke 83.0mm x 64.5mm
Compression Ratio 9.2:1
Fuel Delivery Mikuni® 36mm BSR
Ignition DC - CDI
Starting System Electric
Transmission 6-speed w/reverse; wet multiplate clutch
Drive Train 2WD; sealed O-ring chain
Chassis
Suspension / Front Independent double wishbone; 5-way preload-adjustable shocks, 7.9-in travel
Suspension / Rear Swingarm; preload-adjustable, 8.3-in travel
Brakes / Front Dual hydraulic discs
Brakes / Rear Hydraulic disc
Tires / Front AT21x7-10
Tires / Rear AT20x10-9
Dimensions
L x W x H 69.7 x 43.1 x 42.5 in
Seat Height 32.3 in
Wheelbase 47.6 in
Ground Clearance 4.5 in
Fuel Capacity 2.4 gal
Wet Weight 396 lb
Other
Lighting Dual 30W Krypton multireflector headlights & 21/5W brakelight
Warranty 6 Month (Limited Factory Warranty)

2013 Yamaha Raptor 350 Key Features:
• Torquey, powerful and super-durable air-cooled SOHC four-stroke single puts out a wide, deep powerband and starts with the push of a button.
• With a rugged and smooth-shifting wide-ratio six speed transmission, keeping that powerful engine purring is nearly effortless, whatever the terrain.
• Reverse gear is just the thing for getting yourself out of tight spots.
• Light, 396-pound wet weight boosts performance and handling and makes all-day rides even more enjoyable.
• Big Raptor style and Raptor-inspired seat mean maximum rider comfort and movement with excellent sport-riding ergonomics.

2013 Yamaha Raptor 350 Features and Benefits:
• Light and powerful 348cc, air-cooled, SOHC, four-stroke single produces great torque down low, as well as a serious top-end rush.
• A big, 36mm Mikuni® carburetor provides light throttle pull and excellent throttle response across the entire rpm range.
• Electric starting is standard equipment and works in any gear.
• Shift into reverse from any gear; convenient shift lever allows easy access to reverse, no matter what gear you’re in.
• DC-CDI ignition system delivers consistent spark at all rpm levels—for quick throttle response and a smooth, broad powerband.
• High, snorkel-type intake ensures airflow to the engine while riding in mud or water.
• Automatic cam chain tensioner reduces engine maintenance and ensures optimal performance.
• Easy-to-use, handlebar-mounted choke lever.

Chassis/Suspension:
• Light and strong chassis creates a quick, super-responsive high-performance package.
• Low, 32.3-inch seat height enhances rider comfort and provides optimal rider movement.
• Independent double-wishbone front suspension and preload adjustable shocks with dual rate springs and 7.9 inches of travel.
• Rigid and light swingarm with Raptor-type linkage rear end is controlled by a piggyback reservoir shock with adjustable preload and 8.3 inches of wheel travel; the result is consistent performance during aggressive sport riding.
• Lightweight aluminum wheels reduce unsprung weight for excellent suspension performance, acceleration, deceleration and handling.
• Large-diameter ventilated hydraulic front and rear disc brakes deliver excellent stopping power even in wet conditions.
• Extra-wide, 45mm footpegs provide excellent grip and rider comfort.
• Easy-to-use, toggle link-type handlebar-mounted parking brake can be set with one hand.
• Specially designed low-profile tires deliver outstanding traction for razor-sharp handling in a variety of terrain.
• Easy-adjust chain adjustment feature means hassle-free chain maintenance.
• Composite skid plates and 4.5-inch ground clearance (measured at the rear disc) mean maximum underbelly protection.
• Composite front grab bar won’t dent or rust and helps protect the front end from debris and damage.

Additional Features:
• Dual 30-watt multireflector Krypton headlights straight off the potent YFZ450 add the perfect menacing appearance. Taillight has an incorporated brake light for added convenience.
• Easy-access grease fittings on all chassis lubrication points simplify maintenance and help extend the life of the Raptor 350.
• The 2.4-gallon fuel tank means less filling up and longer, more enjoyable rides.



Motorcycle Insurance Information
www.statefarm.com

State Farm® has offered motorcycle insurance for 40 years
Protection for the Open Road
The open road is always an adventure. You never know what might be around the bend. So make sure you're prepared for whatever the road has in store for you, with a State Farm motorcycle insurance policy.

Motorcycles Covered by State Farm
We will consider any factory-built motorcycle, motorscooter, and other two or three-wheel vehicles including minibikes and trail bikes licensed for use on public roads.

Available Coverage Options
= Bodily injury to someone else or property damage that you accidentally caused while riding your motorcycle. =
= Bodily injury to yourself because of an accident with an uninsured motorist. =
= Damage to your motorcycle caused by an accident. =
= Theft, fire, vandalism, and other losses even while your motorcycle is in storage for the winter. =
= Customization work, such as paint or upgraded components =
= Attached side cars. =

Note: This is only a general description of available coverages and is not a statement of contract. All coverages are subject to policy provisions and applicable endorsements. For further information on motorcycle insurance see a State Farm Agent.


.

2013 Yamaha Raptor 250 USA, Canada Specifications

2013 Yamaha Raptor 250
ATV pictures, review and specifications

The 250 Class Leader by a large margin... - The only 250-class machine that can honestly call itself a sport ATV, the Raptor 250 leads by example with a 5-speed transmission, long-travel suspension and more.

Yamaha's 2013 Raptor 250 is serious fun and it the lightest full size sport ATV out there delivering nimble handling and great power to weight ratio. Plus you get aggressive Raptor styling, class exclusive five-speed manual transmission and low profile 19 inch rear tires for outstanding traction and performance.

Yamaha pictures 2013 Raptor 250 ATV. 480x360 pixels
Yamaha pictures 2013 Raptor 250 ATV 03 Yamaha pictures 2013 Raptor 250 ATV 01
Yamaha pictures 2013 Raptor 250 ATV 05 Yamaha pictures 2013 Raptor 250 ATV 04

2013 Yamaha Raptor 250
USA Specifications

USA MSRP: $4,599 (Team Yamaha Blue/White) Available from June 2012; $4,599 (White w/Graphics Kit) Available from June 2012

Engine
Type 249cc air/oil-cooled 4-stroke; SOHC, 2 valves
Bore x Stroke 74.0 x 58.0mm
Compression Ratio 9.5:1
Fuel Delivery Mikuni® 29mm BSR
Ignition DC-CDI
Starting System Electric
Transmission 5-speed; wet multiplate clutch
Drive Train 2WD; sealed O-ring chain, eccentric adjustment

Chassis
Suspension / Front Independent double wishbone; 5-way preload-adjustable shocks, 7.5-in travel
Suspension / Rear Swingarm, preload-adjustable, 7.9-in travel
Brakes / Front Dual hydraulic disc
Brakes / Rear Hydraulic disc
Tires / Front Dunlop® AT20 x 7-10
Tires / Rear Dunlop® AT19 x 10-9

Dimensions
L x W x H 64.0 x 42.1 x 40.9 in
Seat Height 28.7 in
Wheelbase 43.7 in
Ground Clearance 3.9 in
Fuel Capacity 2.4 gal
Wet Weight 330 lb

Other
Lighting Dual 30W Krypton multireflector headlights & 21/5W brakelight
Warranty 6 Month (Limited Factory Warranty)

2013 Yamaha Raptor 250
Canada Specifications

Canadian MSRP: $5,499 CDN

Engine 4-stroke,SOHC,air/oil cooled, single
Displacement 249cc
Bore and Stroke 74.0 mm × 58.0 mm
Compression Ratio 9.5 : 1
Carburetion Mikuni BSR 29
Ignition DC-C.D.I.
Starting Electric Start
Transmission 5-speed manual
Final Drive Chain

Suspension (Front) Independent Double Wishbone w/double tube front shocks, 7.5" travel;
Suspension (Rear) Link less Mono-Cross rear suspension with aluminum swingarm, 7.9" travel;
Brakes (Front) Dual hydraulic disc
Brakes (Rear) Hydraulic disc
Tires (Front) AT20X7-10 Radial
Tires (Rear) AT19X10-9 Radial

Length 1625mm
Width 1070mm
Height 1040mm
Wheelbase 1110mm
Ground Clearance 100mm / 195mm
Seat Height 730mm
Wet Weight 150kg (330lb)
Fuel Capacity 9 Liters
Colour(s) Racing Blue / White
Warranty One year (unlimited mileage)

Specifications, appearance, and price of product are subject to change without notice.

* MSRP does not include freight, PDI (Pre Delivery Inspection), pre-rigging (boats), or taxes. Dealer may sell for less. See your local dealer for out the door pricing.

** Provincial regulations may require additional equipment for use on public trails.

2013 Yamaha Raptor 250 Review


The Raptor 250 is super light, but packs a mighty punch.

Featuring big Raptor styling in a sharp-handling package that's built to take on whatever the trail throws at it. The Raptor 250 is powered by an engine that feels bigger than 249cc and comes standard with electric starting, Raptor-style head- and taillights, a flip-type parking brake, YFZ-style footpegs and high-performance suspension. You'd be hard pressed to find higher performance or more fun in such an affordable package.

2013 Yamaha Raptor 250 Key Features:


• Aggressive Raptor style and stance gives maximum performance and excellent, all-day sport-riding ergonomics.
• Class-exclusive five-speed manual transmission has a gear for almost any terrain.
• Torquey, durable air-cooled engine puts out plenty of power and starts with the push of a button.
• Low-profile 19-inch rear tires boast outstanding traction and performance.
• Longest suspension travel and lowest seat in its class for true sport handling.
• Lightest weight in its class provides amazingly nimble handling and a great power-to-weight ratio.

2013 Yamaha Raptor 250 Features and Benefits:

• Light and powerful 249cc, air-cooled, SOHC, four-stroke single produces a broad, deep powerband.
• Five-speed gearbox with manual clutch provides the flexibility to tackle pretty much any track or trail.
• Mikuni® 29mm carburetor provides light throttle pull and excellent throttle response across the entire rpm range.
• Electric starting is standard equipment and works in any gear.
• DC-CDI ignition system delivers consistent spark at all rpm levels—for quick throttle response and a smooth, broad powerband.
• Ceramic-composite cylinder liner allows for greatly reduced wear and excellent heat dissipation.
• Oil cooler keeps engine temps down and lubrication up in hot conditions.
• Airbox features no-tools air filter access.
• Three-chamber muffler is light, quiet and boosts low- and midrange performance.

Chassis/Suspension:

• Light, strong, short-wheelbase chassis creates a quick, super-responsive high-performance package.
• Low, 28.7-inch seat height enhances rider comfort and allows optimal rider movement.
• Independent double-wishbone front suspension with five-way preload-adjustable shocks gives 7.5 inches of wheel travel.
• Rigid and light swingarm rear end is controlled by a shock with adjustable preload and 7.9 inches of wheel travel, for rider comfort.
• Lightweight aluminum wheels reduce unsprung weight for excellent suspension performance, acceleration, deceleration and handling.
• Triple hydraulic disc brakes deliver excellent stopping power even in wet conditions.
• Extra-wide, 45mm footpegs provide excellent grip and rider comfort.
• Easy-to-use, flip-type handlebar-mounted parking brake can be set with one hand.
• Low profile Dunlop® tires deliver outstanding traction for razor sharp handling in a variety of terrain.
• Easy-adjust eccentric chain adjustment feature means hassle-free chain maintenance.
• Flat, composite skidplates provide maximum underbelly protection.
• Rugged steel grab bars front and rear help fend off debris and damage.

Additional Features:

• Dual 30-watt multireflector Krypton headlights add the perfect menacing appearance. Taillight has an incorporated brake light for added convenience.
• Waterproof electrical connectors provide outstanding durability and reliability.
• Easy-access grease fittings on all chassis lubrication points simplify maintenance and help extend the life of the Raptor 250.
• Bodywork comes off without the need to disassemble electrical parts, airbox or wiring harness—for easy maintenance.
• A 2.4-gallon fuel tank means less filling up and longer, more enjoyable rides.


Motorcycle Insurance Information
www.statefarm.com

State Farm® has offered motorcycle insurance for 40 years
Protection for the Open Road
The open road is always an adventure. You never know what might be around the bend. So make sure you're prepared for whatever the road has in store for you, with a State Farm motorcycle insurance policy.

Motorcycles Covered by State Farm
We will consider any factory-built motorcycle, motorscooter, and other two or three-wheel vehicles including minibikes and trail bikes licensed for use on public roads.

Available Coverage Options
= Bodily injury to someone else or property damage that you accidentally caused while riding your motorcycle. =
= Bodily injury to yourself because of an accident with an uninsured motorist. =
= Damage to your motorcycle caused by an accident. =
= Theft, fire, vandalism, and other losses even while your motorcycle is in storage for the winter. =
= Customization work, such as paint or upgraded components =
= Attached side cars. =

Note: This is only a general description of available coverages and is not a statement of contract. All coverages are subject to policy provisions and applicable endorsements. For further information on motorcycle insurance see a State Farm Agent.


.

Friday, June 28, 2013

2013 Yamaha V-Star 1300 Tourer Motorcycle pictures, review and specifications

2013 Yamaha V-Star 1300 Tourer
Motorcycle pictures, review and specifications

Long low style in a scaled down package with a windshield, leather-wrapped hard bags, and a passenger backrest...

Power, handling, comfort and style. The 2013 Yamaha V-Star 950 Tourer offers serious middleweight performance in user friendly, confidence inspiring package. Lightweight, easy handling and a low seat height will appeal to new riders, while seasoned veterans will appreciate the comfort of the Tourer's windshield, locking saddlebags and passenger backrest. Discover your free spirit whether commuting to work or exploring back roads.

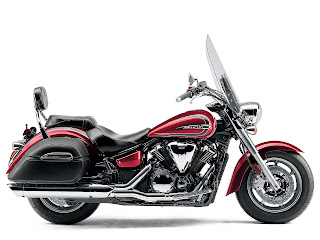

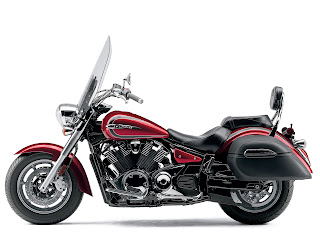

YAMAHA PICTURES | 2013 Yamaha V-Star 1300 Tourer, 480x360 pixels
YAMAHA PICTURES | 2013 Yamaha V-Star 1300 Tourer 4 YAMAHA PICTURES | 2013 Yamaha V-Star 1300 Tourer 5


2013 Yamaha V-Star 1300 Tourer Review

The V Star 1300 Tourer has it all for you to see the boulevard and the country in comfort and style...

The 2013 Yamaha V-Star 1300 has a casual touring stablemate. The Tourer version of the Yamaha V-Star 1300 has all the same great features plus a windshield, locking saddlebags and passenger backrest. These value added items are sure to have the miles rolling by in style and comfort.

Power and Comfort equals Touring Perfection.

With handlebars that provide a relaxed riding position, a contoured seat that's just 27.2 inches and standard features like belt drive, leather covered hardbags and a windscreen you are ready to roll in style and comfort. It features an 80 cubic inch, fuel injected V-Twin engine that provides plenty of power, a great exhaust note and tons of reliability.

http://1.bp.blogspot.com/-bTLqHLSsQqs/UcPHGKU13-I/AAAAAAAABHw/OH80CUOnWNE/s1600/Yamaha-Pictures-2013-VStar-1300-Tourer-5.jpg 1The V-Star 1300 Tourer has the same class leading power and handling of the regular V-Star 1300 plus 3 of the most sought after "casual touring" extras.

A windshield, locking saddlebags and passenger backrest make the Tourer a perfect weekend escape machine. From the spacious rider floorboards to the roomy saddlebags, all of the components blend together to offer unmatched function, comfort and style.

2013 Yamaha V-Star 1300 Tourer Key Features

US MPG Fuel Consumption: 42 mpg; Fuel Consumption ± 18kpl/51mpg(Imp)

60 degree, fuel injected, V-twin

Windshield, backrest & saddlebags

The V Star 1300 Tourer comes standard with hard leather-wrapped sidebags, passenger backrest and windshield. The touring package is designed from the factory so it’s styled consistently with the bike’s fluid lines.

The midsize V Star 1300 Tourer brings modern-classic styling along for a lighter, sportier, hot-rod-inspired ride.

http://1.bp.blogspot.com/-bTLqHLSsQqs/UcPHGKU13-I/AAAAAAAABHw/OH80CUOnWNE/s1600/Yamaha-Pictures-2013-VStar-1300-Tourer-5.jpg 380-cubic-inch (1304cc) liquid-cooled, fuel-injected V-twin produces excellent power across the board along with a highly stimulating exhaust note.

Modern-classic design, including a flangeless gas tank and two-into-one exhaust, gives the V Star 1300 Tourer that distinctive Star® look.

Steel chassis gets 48 percent of the bike’s weight on the front tire, for quick, light handling and maneuverability.

Authentic cruiser features such as belt drive, steel fenders and fuel tank, open up the customization possibilities even further.

Estimated 42 mpg* means over 200 miles of riding between fill-ups.

The Star Accessories Catalog is packed full of high-quality parts that invite Star owners to fully express their individuality.

2013 Yamaha V-Star 1300 Tourer Features and Benefits

Engine:

•1304cc, (80 cubic inch) liquid-cooled, short stroke, SOHC, 8-valve, 60° V-twin powerplant pumps out excellent power and torque for unparalleled acceleration and cruising performance. At 110 km/hr the engine is only turning 3,400 rpm, for relaxed highway cruising.

•Electric starting system features a mechanical centrifugal decompression device in the exhaust camshaft for easy, no-hassle starting and reduced battery size and weight.

•Liquid-cooling not only allows for higher state of tune but also reduces mechanical noise for a quieter engine.

•In an effort to maintain the classic air-cooled appearance of the engine, cooling fins have been added as a styling highlight.

•The short stroke engine design reduces the "tallness" of the engine, while the 60 degree "V" makes the engine more compact thereby centralizing mass and lowering the center of gravity for lighter more responsive handling.

http://1.bp.blogspot.com/-bTLqHLSsQqs/UcPHGKU13-I/AAAAAAAABHw/OH80CUOnWNE/s1600/Yamaha-Pictures-2013-VStar-1300-Tourer-5.jpg 2•Classic V-twin "pulse feeling" and engine character highlight this powerplant while annoying high frequency vibration has been eliminated.

•One-piece cylinder heads feature 4-valves per cylinder to provide optimum breathing efficiency for maximum power output. Each head is fitted with a single long reach spark plug.

•Stylish chromed cylinder head covers.

•The SOHC valve train features 36mm intake and 32mm exhaust valves with special single coil springs for great power and torque. Valve angles are set at 20 degrees. Specially designed roller rockers activate the valves. The roller rocker system allows a greater amount of valve lift without producing excessive camshaft wear and friction. The slipper portion of the rocker arm features a needle bearing to further reduce wear and slide resistance. The camshafts have been specially designed to provide class leading power.

•Optimized squish area forces the fuel / air mixture toward the centre of the combustion chamber for more complete combustion and hence power.

•The water pump which is integrated with the oil pump and is located inside the engine cases to keep a cleaner, more traditional air-cooled look to the powerplant. The engine uses a wet sump lubrication system.

•The radiator is mounted between the front frames down tubes to minimize its appearance especially when viewing the machine from the side. Even the rad hoses have been discreetely placed for a cleaner appearance. An electric fan aids in cooling in stop and go traffic.

•Automatic hydraulic cam chain tensioners reduce mechanical noise and extend engine life.

•Ceramic composite-plated cylinders reduce weight, increase cylinder life and provide uniform heat dissipation. The cylinders have a tapered "V" appearance to highlight the V-twin design. Cylinder bore is 100mm.

•Forged pistons offer great durability and reduced weight for faster engine response and less mechanical vibration.

•Crankshaft features a single crank pin design which enhances the pulse feeling and engine character.

•Single axis, left and right dual engine counter balancers reduce vibration to a minimum while maximizing rider comfort.

•Crankcase design features internal oil and coolant lines for a clean, air-cooled engine appearance. There are special piston coolers that spray oil at the under side of the pistons.

•Easy access, spin on type oil filter

•Classic side mounted 3.7 liter air box houses a viscous paper-type filter and adds that special styling touch.

•Mikuni dual bore, 40mm returnless-type throttle body fuel injection system with TPS (Throttle Position Sensor) and ISC (Idle Speed Control) . This is a "closed loop" system that utilizes an oxygen sensor. The oxygen sensor "sniffs" spent exhaust gases and feedback info to the ECU which in turn adjusts the fuel/air mixture for maximum power with minimum emissions. The oxygen sensor is located before the mufflers, so the use of slip-ons will not effect this system.

•Bore size is 40mm and each injector features 12 holes and a dual spray pattern for better fuel atomization and more complete combustion chamber filling. There is one injector per cylinder. Fuel injection benefits include improved fuel economy, chokeless operation, reduced emissions, and steady idling during start-up.

•2 into 1 exhaust system features a 3-way honeycomb catalyzer at the entry point to the muffler. The catalyzier reduces harmful exhaust emissions, while the muffler produces a throaty V-Twin growl. The rear portion of the muffler features a "slash cut" end.

•Maintenance-free transistor controlled ignition (T.C.I.) provides a hot spark for sure starts and strong engine performance.

•Smooth-shifting, 5-speed transmission with 5th gear overdrive delivers outstanding cruising performance and reduced rpms at highway speeds. The engine is spinning at 3,400 rpm at 110 km/hr.

•Clean, quiet belt drive system is extremely low maintenance and simplifies customization. The belt is unique to the XVS1300 and features carbon cords for strength.

•Specially designed starter motor features a damping mechanism to prevent damage from kick back.

•Air Induction System (A.I.S.) reduces harmful exhaust emissions (CO + HC).

•One piece classic heel-and-toe shifter adds versatility and enhances the overall cruising experience.

Chassis and Suspension:

•Double cradle steel frame offers roomy ergonomics, and great handling. This frame utilizes a rigid engine mounting system to optimize the overall rigidity balance for superior handling. The rack is 32 degrees, while the lean angle is a sporty 36 degrees.

•Steel swingarm matches the frame and provides superior performance in a wide variety of conditions, while also making a bold styling statement.

•Long 1,690mm (66.5") wheelbase creates a long, low retro profile and provides solid, stable handling.

•The long low design means spacious ergonomics with lots of leg room, which maximizes both rider and passenger comfort.

•41mm KYB front fork features stylish large-diameter brushed-finished covers. Wheel travel is 135mm (5.3") for a smooth, comfortable ride.

•Monocross style, spring preload-adjustable, single-shock, link rear suspension centralizes mass for agile handling. The linkage system provides a rising rate effect that provides excellent compliance on both small and large bumps. There are 9 positions of spring preload adjustability to suit rider preference.

•Rear shock is vertically mounted behind the engine and is tucked out of sight for that classic, hardtail look. Rear wheel travel is 110mm (4.3").

•Dual 298mm, floating front discs are squeezed by compact twin piston front calipers.

•298mm rear disc brake squeezed by single piston caliper mounted to the underside of the swingarm. This design not only helps to hide the caliper but also lowers the center of gravity for better handling.

•Lightweight 7-spoke cast aluminum wheels are fitted with wide tubeless tires. These stylish "mag" wheels are both easy to clean and never require maintaince. The rear drive pulley matches the wheel design.

•Full-size, "tapered" floating-type rider floorboards are roomy and comfortably positioned while also helping to reduce vibration. There is a replaceable "scraper" on the lower edge of the footboard.

•1 inch, rubber mounted handlebars are easy to reach and help to reduce vibration.

•Front and rear fenders are steel for easy customization and painting if desired.

•18.5 liter teardrop shaped fuel tank with flush mounted filler cap. Fuel tank features a seamless design for that clean, custom look.

•Generous rider and passenger seats offer plenty of room and support for all day riding comfort. Seat height is only 690mm or 27.2" inches off the ground.

•Handlebar-mounted chromed instrument features an analog speedometer, digital odometer, dual tripmeters, low fuel tripmeter, clock and low fuel warning light. Stylish red background illumination.

•Handlebar switch gear allows the operator to change instrument functions via buttons on the back of the RHS handlebar switch, thereby eliminating the need to take your hands off the bars to adjust the main instrument functions.

•60/55 watt high intensity halogen headlight emphasizes the "wild streamline", mass forward styling design. The chromed headlight body is adjustable up and down plus left and right via remote adjusters. There are also two 35 watt accessory light connectors inside the headlight shell for accessory passing lamps.

•Tall windshield features chrome accents and a central Star logo that enhances the unit's overall styling. This windshield offers excellent wind and weather protection and can be easily removed with only 4 bolts.

•Leather covered, hard shell saddlebags feature a stylish tapered design and are lockable for extra security. The bags offer 42 litres of storage capacity each, ample room for casual touring.

•Passenger backrest with embossed Star logo provides that extra peace of mind for a passenger.

Additional Features:

•Industry-leading Star family fit and finish features rich, lustrous paint and extensive chrome accents creating a machine as stunning as it is powerful.
•3D fuel tank emblems enhance quality and attention to detail.
•Chromed drive belt cover
•Extra wide front brake and clutch levers provide a quality feel.
•Steering lock is integrated into the main ignition switch for extra convenience.
•Handy, under seat helmet holder
•Low-maintenance, sealed battery ensures fuss-free, dependable starting.
•Self-cancelling turn signals feature stylish clear lenses.
•Conventional passenger footpegs
•High output 460 watt generator
•Electric fuel pump

2013 Yamaha V-Star 1300 Tourer
USA Specifications

US MSRP Price: $12,290 (Candy Red) USD

Engine
Type 80-cubic-inch (1304cc) liquid-cooled V-twin; SOHC, 4 valves/cylinder
Bore x Stroke 100.0 mm x 83.0 mm
Compression Ratio 9.5:1
Fuel Delivery Fuel injection
Ignition TCI: Transistor Controlled Ignition
Transmission 5-speed; multiplate wet clutch
Final Drive Belt

Chassis
Frame Double Cradle
Suspension / Front 41mm Telescopic fork; 5.3-in travel
Suspension / Rear Single shock; 4.3-in travel
Brakes / Front Dual hydraulic disc, 298mm
Brakes / Rear Hydraulic disc, 298mm
Tires / Front 130/90-16M/C 67H
Tires / Rear 170/70B-16M/C 75H
Wheels 7-spoke aluminum

Dimensions
Length 98.0 in
Width 39.4 in
Height 59.8 in
Seat Height 27.2 in
Wheelbase 66.5 in
Fuel Capacity 4.9 gal
Fuel Economy** 42 mpg
Wet Weight*** 712 lb

Other
Warranty 1 Year (Limited Factory Warranty)

*Prices and specifications subject to change without notice. Please read your Owner's Manual and all labels before operation.
**Fuel economy estimates are based on US EPA exhaust emission certification data obtained by Yamaha. Your actual mileage will vary depending on road
conditions, how you ride and maintain your vehicle, accessories, cargo, and operator/passenger weight.
***Wet weight includes the vehicle with all standard equipment and all fluids, including oil, coolant (as applicable) and a full tank of fuel.

2013 Yamaha V-Star 1300 Tourer
Canadian Specifications

Canada MSRP Price: $13,499 CDN

Engine Liquid-cooled, SOHC , 8-valve, 60°, V-twin
Displacement 1,304cc (80 cubic inch)
Bore and Stroke 100 x 83mm
Compression Ratio 9.5:1
Maximum Torque 11.3 kg-m (81.8 ft-lb) @ 4,000 rpm
Fuel Delivery Mikuni dual bore 40mm F.I.
Estimated Fuel Consumption* 18kpl / 51mpg (Imp.)
Ignition / Starting TCI / Electric
Transmission 5-speed
Final Drive Belt

Suspension (Front) 41mm fork
Suspension (Rear) Adjustable link Monocross
Brakes (Front) Dual 298mm discs
Brakes (Rear) 298mm disc
Tires (Front) 130/90-16
Tires (Rear) 170/70-16

Length 2,490mm (98")
Width 1000mm (39.4")
Height 1520mm (59.8")
Wheelbase 1,690mm (66.5")
Seat Height 690mm (27,2 ")
Fuel Capacity 18.5 litres (4.1 imp. gallons)
Wet Weight 323kg (712 lb)
Colour(s) Purplish Metallic Blue

± Fuel economy estimates are based on US EPA exhaust emission certification data obtained by Yamaha and converted into Canadian measurements. Your actual mileage will vary depending on road condition, how you ride, maintain your vehicle, accessories, cargo and operator/passenger weight.

Specifications, appearance, and price of product are subject to change without notice.

* MSRP does not include freight, PDI (Pre Delivery Inspection), pre-rigging (boats), or taxes. Dealer may sell for less. See your local dealer for out the door pricing.




Motorcycle Insurance Information
allstate.com
Check Out a Typical Allstate Motorcycle Insurance PolicyInsurance PolicyInsurance Policy
We'll show what coverages may be available and how to get the personalized protection you need.

Even if you've been riding for years, it's a good idea to take a close look at your motorcycle insurance coverage. Things change, and chances are you've got a lot to look out for.

Explore features available from Allstate
Our motorcycle insurance coverage is packed with ways to help turn a really bad day around.

Allstate offers great coverage for gas-friendly scooters
For people who have turned to scooters for gas savings -- or just because they're fun -- you'll be happy to know that Allstate offers coverage for those, too. No matter the engine size, gas or electric, Allstate provides scooter insurance for most street-legal vehicles, offering the same great protection and discounts as our motorcycle coverage.

To get your free quote, call 1-877-379-BIKE (1-877-379-2453) today.

2013 Yamaha Raptor YFZ450 Insurance Information

2013 Yamaha Raptor YFZ450
ATV pictures, review and specifications

Best in class performance at an unbeatable price...

Boasting a powerful, quick-revving engine and light, nimble handling, the YFZ450 shreds its competition not only on performance, but also price.

Yamaha pictures 2013 Raptor YFZ450 ATV. 480x360 pixels


2013 Yamaha Raptor YFZ450
USA Specifications

USA MSRP: $6,899 (Black Metalic) Available from October 2012; $6,899 (White w/Graphics Kit) Available from October 2012

Engine
Type 449cc liquid-cooled w/fan, 4-stroke; DOHC, 5 valves
Bore x Stroke 95.0mm x 63.4mm
Compression Ratio 11.4:1
Fuel Delivery Mikuni® 42mm BSR
Ignition DC - CDI
Starting System Electric
Transmission 5-speed; wet multiplate clutch
Drive Train 2WD; sealed O-ring chain, eccentric adjustment

Chassis
Suspension / Front Independent double wishbone, threaded preload adjustment, 9.1-in travel
Suspension / Rear Cast aluminum swing arm, threaded preload adjustment, 10.6-in travel
Brakes / Front 127mm Dual hydraulic disc
Brakes / Rear 173mm Hydraulic disc
Tires / Front Dunlop® AT21 x 7-10
Tires / Rear Dunlop® AT20 x 10R9

Dimensions
L x W x H 72.4 x 46.1 x 42.9 in
Seat Height 31.9 in
Wheelbase 50.4 in
Ground Clearance 4.5 in
Fuel Capacity 2.6 gal
Wet Weight 385 lb

Other
Lighting Dual 30W Krypton multireflector headlights & 3.9/0.5W LED brakelight
Warranty 6 Month (Limited Factory Warranty)

2013 Yamaha Raptor YFZ450
Canada Specifications

Canadian MSRP: $8,999 CDN

Engine 4-Stroke Single, Liquid Cooled w/Fan, 5-Valve DOHC
Displacement 449cc
Bore and Stroke 95mm x 63.4mm
Compression Ratio 11.4:1
Carburetion Mikuni 42mm BSR
Ignition DC - CDI
Starting Electric
Transmission Wide ratio, 5-Speed Manual
Final Drive Sealed O-Ring Chain

Suspension (Front) Independent Double Wishbone, 9.1" travel
Suspension (Rear) Aluminum swingarm, 10.6" travel
Brakes (Front) Dual Hydraulic Disc, Twin Piston Caliper
Brakes (Rear) Hydraulic Disc, Twin Piston Caliper
Tires (Front) AT21x7-10 Radial
Tires (Rear) AT20x10-9 Radial

Length 1,840mm (72.4")
Width 1,170mm (46.1")
Height 1,090mm (42.9")
Wheelbase 1,280mm (50.4")
Ground Clearance 112mm (4.4")
Seat Height 810mm (31.9")
Dry Weight 159kg (350 lb)
Fuel Capacity 10 litres
Colour(s) Black
Warranty 6 months (unlimited mileage)

Specifications, appearance, and price of product are subject to change without notice.

* MSRP does not include freight, PDI (Pre Delivery Inspection), pre-rigging (boats), or taxes. Dealer may sell for less. See your local dealer for out the door pricing.

** Provincial regulations may require additional equipment for use on public trails.

2013 Yamaha Raptor YFZ450 Review


Combine the powerful YZ450 engine with an ultra-lightweight chassis... add in high tech suspesion and you end up with an extrememly capable sport ATV that is equally at home on the trail or race track.

The YFZ450 has had more than a few #1 plates on it. Its race winning pedigree is known from Coast to Coast.

An ultra-high performance sport ATV, the YFZ 450 has a powerful, industry-exclusive, five-valve engine. Combined with a 350-pound dry weight and you have one of the best power-to-weight ratios of any ATV ever produced.

2013 Yamaha Raptor YFZ450 Key Features:

Yamaha pictures 2013 Raptor YFZ450 ATV 02

• The new 2012 YFZ450 offers great value – true 450cc class performance at 400cc class price.
• Significantly more low and midrange performance compared with the previous YFZ450 model, yet with the same peak power output thanks to revised cam profile and timing and new ignition mapping. Throttle lever effort is lighter than before for all-day riding comfort.
• Lightweight, ultra-compact steel frame with aluminum sub frame give the new YFZ450 awesome flexibility.
• Just like its YFZ cousins, the new YFZ450 has great handling characteristics the family is known for.
• The YFZ450 comes standard with pushbutton electric starting, a convenient flip-type parking brake and suspension calibrated for performance.
• A plethora of GYTR® accessories are readily available for this machine.

2013 Yamaha Raptor YFZ450 Features and Benefits:

Yamaha pictures 2013 Raptor YFZ450 ATV 03• 449cc liquid-cooled, DOHC four-stroke with five valves features 95mm bore and 63.4mm stroke for massive power with high over-rev capacity and crisp, linear throttle response.
• A large 42mm Mikuni® BSR carburetor delivers precise fuel/air mixing and crisp throttle response with low throttle lever effort.
• Smooth-shifting YZ-spec ratchet-type five-speed transmission and heavy-duty clutch deliver all that power to the rear tires with maximum efficiency.
• Large-capacity radiator is optimally mounted in the frame to guard against damage.
• Reliable pushbutton electric start in any gear adds extra convenience.
• Additional weight-saving engine features include: magnesium cylinder head cover and right-side crankcase cover.
• Dry-sump engine carries oil in an aluminum tank directly in front of the engine for excellent cooling and optimal protection from rocks or mud.
• Large capacity airbox features no-tool access to the extra large oiled dual-foam filter for easy maintenance.

Chassis/Suspension:

Yamaha pictures 2013 Raptor YFZ450 ATV 04• Independent aluminum upper A-arm front suspension features 9.1 inches of travel.
• Rear suspension system uses YZ-linkage type, controlled by a piggyback shock with 10.6 inches of travel.
• Dual hydraulic front brakes with 127mm discs and class-exclusive, dual-piston hydraulic 173mm rear disc provide strong braking capability with progressive control and feel.
• The wheel has been designed with the inner lip rolled in. This increases the rigidity, allowing a reduction in weight while maintaining strength.
• High-performance 21x7-10 front and 20x10R9 rear Dunlop® radials, designed specifically for the YFZ450, deliver superb, class-leading traction.
• Ultra-rigid cast aluminum swingarm reduces unsprung weight and provides optimal suspension action.
• Long travel out back means an excellent ride and handling.
• Eccentric chain adjuster mechanism simplifies that job.
• Long, low, and narrow YZ-style seat enhances the quick, balanced steering and optimal rider movement.

Additional Features:

• Rugged steel 45mm foot rests provide excellent grip and rider comfort.
• Large-capacity, 2.6-gallon fuel tank provides excellent range.
• Dual 30-watt multireflector Krypton headlights set back in the front cowl add the perfect menacing appearance. 21/5W taillight is tough, and incorporates a brakelight for added convenience.


Motorcycle Insurance Information
www.statefarm.com

State Farm® has offered motorcycle insurance for 40 years
Protection for the Open Road
The open road is always an adventure. You never know what might be around the bend. So make sure you're prepared for whatever the road has in store for you, with a State Farm motorcycle insurance policy.

Motorcycles Covered by State Farm
We will consider any factory-built motorcycle, motorscooter, and other two or three-wheel vehicles including minibikes and trail bikes licensed for use on public roads.

Available Coverage Options
= Bodily injury to someone else or property damage that you accidentally caused while riding your motorcycle. =
= Bodily injury to yourself because of an accident with an uninsured motorist. =
= Damage to your motorcycle caused by an accident. =
= Theft, fire, vandalism, and other losses even while your motorcycle is in storage for the winter. =
= Customization work, such as paint or upgraded components =
= Attached side cars. =

Note: This is only a general description of available coverages and is not a statement of contract. All coverages are subject to policy provisions and applicable endorsements. For further information on motorcycle insurance see a State Farm Agent.


.

Thursday, June 27, 2013

2013 Yamaha Pictures V-Star 1300 Deluxe Review, Specifications

2013 Yamaha V-Star 1300 Deluxe
Motorcycle pictures, review and specifications

New for 2013, the V Star 1300 Deluxe is the world’s first and only production midsize bagger...

Introducing the new 2013 Yamaha V-Star 1300 Deluxe, the only casual full dress touring machine in the mid displacement class. Brimming with features, the Yamaha Deluxe offers all day riding comfort with plenty of storage. The 2013 V-Star 1300 Deluxe delivers exceptional performance and value, making it the ideal choice for riders looking for high end appearance and features in a midsized cruiser.

YAMAHA PICTURES | 2013 Yamaha V-Star 1300 Deluxe, 480x360 pixels

YAMAHA PICTURES | 2013 Yamaha V-Star 1300 Deluxe 3 YAMAHA PICTURES | 2013 Yamaha V-Star 1300 Deluxe 4
YAMAHA PICTURES | 2013 Yamaha V-Star 1300 Deluxe 5 YAMAHA PICTURES | 2013 Yamaha V-Star 1300 Deluxe 6
YAMAHA PICTURES | 2013 Yamaha V-Star 1300 Deluxe 1 YAMAHA PICTURES | 2013 Yamaha V-Star 1300 Deluxe 2


2013 Yamaha V-Star 1300 Deluxe Review

All Dressed up With Everywhere to go.

Introducing the world's first production midsize bagger! Packed with features including a torquey 80 cubic inch engine, stylish and functional fork mounted fairing, fully integrated dash and audio system with iPod/iPhone 5 compatiliity, hand controller for audio, Garmin Zumo 665 motorcycle friendly navigation system (featuring XM satellite radio capability, bluetooth wireless, waterproof design, lane assist and 3D building view), hard bags with tons of storage, steel fenders and muchmore. The all new 2013 Yamaha V-Star 1300 Deluxe truly is in a class by itself.

The new V-Star 1300 Deluxe offers great touring comfort and reliability in an easy to handle mid-size package.

Powered by a 1304cc fuel injected, liquid-cooled V-Twin, the Deluxe also sports a classic-styled fairing, 28.5 litre hard shell saddlebags and an iPod / iPhone ready audio system with dual speakers. Add the Garmin Zumo 665 GPS nav system into the mix and you are ready to hit the open road for places unknown in comfort and style.

2013 Yamaha V-Star 1300 Deluxe Key Features

US MPG Fuel Consumption: NA mpg; Fuel Consumption ± 18kpl/51mpg(Imp)

Colour matched fairing with audio ready & navigation systems

Spacious locking hard saddlebags

The V Star 1300 Deluxe delivers exceptional value in the full-dress category, at a surprisingly low $13,690 MSRP, making it the ideal choice for the midsize cruiser rider wanting high-end appearance and features.

The fork mounted fairing offers riders great weather protection and dynamic, sporty good looks.

A fully integrated dash and audio system with iPod®/ iPhone® compatibility. Riders can control their music on a control pod located on the left handlebar.

The V Star 1300 Deluxe is equipped with a rugged, waterproof Garmin® zumo® 665 GPS. Features include motorcycle-friendly navigation, including weather and traffic conditions (if subscribed to monthly service), lane assist, and 3D building view. XM® satellite radio (with subscription) and Bluetooth® wireless functionality.

Hard, lockable side bags have spacious room for long trips or commuting.

Real steel fenders make V Star 1300 Deluxe ideal for customization.

The Star Accessories Catalog is packed full of high-quality parts that invite Star owners to fully express their individuality.

2013 Yamaha V-Star 1300 Deluxe Features and Benefits

Engine:

•1304cc, (80 cubic inch) liquid-cooled, short stroke, SOHC, 8-valve, 60° V-twin powerplant pumps out excellent power and torque for unparalleled acceleration and cruising performance. At 110 km/hr the engine is only turning 3,400 rpm, for relaxed highway cruising.

•Electric starting system features a mechanical centrifugal decompression device in the exhaust camshaft for easy, no-hassle starting and reduced battery size and weight.

•Liquid-cooling not only allows for higher state of tune but also reduces mechanical noise for a quieter engine.

•In an effort to maintain the classic air-cooled appearance of the engine, cooling fins have been added as a styling highlight.

•The short stroke engine design reduces the "tallness" of the engine, while the 60 degree "V" makes the engine more compact thereby centralizing mass and lowering the center of gravity for lighter more responsive handling.

•Classic V-twin "pulse feeling" and engine character highlight this powerplant while annoying high frequency vibration has been eliminated.

•One-piece cylinder heads feature 4-valves per cylinder to provide optimum breathing efficiency for maximum power output. Each head is fitted with a single long reach spark plug.

•Stylish chromed cylinder head covers.

•The SOHC valve train features 36mm intake and 32mm exhaust valves with special single coil springs for great power and torque. Valve angles are set at 20 degrees. Specially designed roller rockers activate the valves. The roller rocker system allows a greater amount of valve lift without producing excessive camshaft wear and friction. The slipper portion of the rocker arm features a needle bearing to further reduce wear and slide resistance. The camshafts have been specially designed to provide class leading power.

•Optimized squish area forces the fuel / air mixture toward the centre of the combustion chamber for more complete combustion and hence power.

•The water pump which is integrated with the oil pump and is located inside the engine cases to keep a cleaner, more traditional air-cooled look to the powerplant. The engine uses a wet sump lubrication system.

•The radiator is mounted between the front frames down tubes to minimize its appearance especially when viewing the machine from the side. Even the rad hoses have been discreetely placed for a cleaner appearance. An electric fan aids in cooling in stop and go traffic.

•Automatic hydraulic cam chain tensioners reduce mechanical noise and extend engine life.

•Ceramic composite-plated cylinders reduce weight, increase cylinder life and provide uniform heat dissipation. The cylinders have a tapered "V" appearance to highlight the V-twin design. Cylinder bore is 100mm.

•Forged pistons offer great durability and reduced weight for faster engine response and less mechanical vibration.

•Crankshaft features a single crank pin design which enhances the pulse feeling and engine character.

•Single axis, left and right dual engine counter balancers reduce vibration to a minimum while maximizing rider comfort.

•Crankcase design features internal oil and coolant lines for a clean, air-cooled engine appearance. There are special piston coolers that spray oil at the under side of the pistons.

•Easy access, spin on type oil filter

•Classic side mounted 3.7 liter air box houses a viscous paper-type filter and adds that special styling touch.

•Mikuni dual bore, 40mm returnless-type throttle body fuel injection system with TPS (Throttle Position Sensor) and ISC (Idle Speed Control) . This is a "closed loop" system that utilizes an oxygen sensor. The oxygen sensor "sniffs" spent exhaust gases and feedback info to the ECU which in turn adjusts the fuel/air mixture for maximum power with minimum emissions. The oxygen sensor is located before the mufflers, so the use of slip-ons will not effect this system.

•Bore size is 40mm and each injector features 12 holes and a dual spray pattern for better fuel atomization and more complete combustion chamber filling. There is one injector per cylinder. Fuel injection benefits include improved fuel economy, chokeless operation, reduced emissions, and steady idling during start-up.

•2 into 1 exhaust system features a 3-way honeycomb catalyzer at the entry point to the muffler. The catalyzier reduces harmful exhaust emissions, while the muffler produces a throaty V-Twin growl. The rear portion of the muffler features a "slash cut" end.

•Maintenance-free transistor controlled ignition (T.C.I.) provides a hot spark for sure starts and strong engine performance.

•Smooth-shifting, 5-speed transmission with 5th gear overdrive delivers outstanding cruising performance and reduced rpms at highway speeds. The engine is spinning at 3,400 rpm at 110 km/hr.

•Clean, quiet belt drive system is extremely low maintenance and simplifies customization. The belt is unique to the XVS1300 and features carbon cords for strength.

•Specially designed starter motor features a damping mechanism to prevent damage from kick back.

•Air Induction System (A.I.S.) reduces harmful exhaust emissions (CO + HC).

•One piece classic heel-and-toe shifter adds versatility and enhances the overall cruising experience.

Chassis and Suspension:

•Double cradle steel frame offers roomy ergonomics, and great handling. This frame utilizes a rigid engine mounting system to optimize the overall rigidity balance for superior handling. The rack is 32 degrees, while the lean angle is a sporty 36 degrees.

•Steel swingarm matches the frame and provides superior performance in a wide variety of conditions, while also making a bold styling statement.

•Long 1,690mm (66.5") wheelbase creates a long, low retro profile and provides solid, stable handling.

•The long low design means spacious ergonomics with lots of leg room, which maximizes both rider and passenger comfort.

•41mm KYB front fork features stylish large-diameter brushed-finished covers. Wheel travel is 135mm (5.3") for a smooth, comfortable ride.

•Monocross style, spring preload-adjustable, single-shock, link rear suspension centralizes mass for agile handling. The linkage system provides a rising rate effect that provides excellent compliance on both small and large bumps. There are 9 positions of spring preload adjustability to suit rider preference.

•Rear shock is vertically mounted behind the engine and is tucked out of sight for that classic, hardtail look. Rear wheel travel is 110mm (4.3").

•Dual 298mm, floating front discs are squeezed by compact twin piston front calipers.

•298mm rear disc brake squeezed by single piston caliper mounted to the underside of the swingarm. This design not only helps to hide the caliper but also lowers the center of gravity for better handling.

•Lightweight 7-spoke cast aluminum wheels are fitted with wide tubeless tires. These stylish "mag" wheels are both easy to clean and never require maintaince. The rear drive pulley matches the wheel design.

•Stylish fork mounted faring offers a dynamic look as well as great weather protection. It also features dual speakers providing excellent sound quality. A taller windshield provides relaxed cruising comfort. The Garmin Zumo 665 navigation system is neatly integrated into the centre of the fairing cockpit. It can be easily removed if desired

•The V-Star 1300 Deluxe is equipped with a Garmin Zumo 665 GPS / navigation system. The Garmin Zumo series are specifically designed for motorcycle use and feature a rugged, waterproof design. For complete details for the Zumo 665 please go to: https://buy.garmin.com/shop/shop.do?pID=65203

•iPod / iPhone ready audio system features dual fairing mounted speakers and convenient handlebar mounted audio controller. Just plug in your iPod / iPhone into the special connector in the saddlebag and sit back, relax and enjoy your favorite tunes.

•Beautifully styled 28.5 litre, colour matched, hard locking saddlebags offer plenty of convenient storage.

•Full-size, "tapered" floating-type rider floorboards are roomy and comfortably positioned while also helping to reduce vibration. There is a replaceable "scraper" on the lower edge of the footboard.

•1 inch, rubber mounted handlebars are easy to reach and help to reduce vibration.

•Front and rear fenders are steel for easy customization and painting if desired.

•18.5 liter teardrop shaped fuel tank with flush mounted filler cap. Fuel tank features a seamless design for that clean, custom look.

•Generous rider and passenger seats offer plenty of room and support for all day riding comfort. Seat height is only 690mm or 27.2" inches off the ground.

•Handlebar-mounted chromed instrument features an analog speedometer, digital odometer, dual tripmeters, low fuel tripmeter, clock and low fuel warning light. Stylish red background illumination.

•Handlebar switch gear allows the operator to change instrument functions via buttons on the back of the RHS handlebar switch, thereby eliminating the need to take your hands off the bars to adjust the main instrument functions.

•60/55 watt high intensity halogen headlight emphasizes the "wild streamline", mass forward styling design. The chromed headlight body is adjustable up and down plus left and right via remote adjusters. There are also two 35 watt accessory light connectors inside the headlight shell for accessory passing lamps.

Additional Features:

• Industry-leading Star family fit and finish features rich, lustrous paint and extensive chrome accents creating a machine as stunning as it is powerful.
• 3D fuel tank emblems enhance quality and attention to detail.
• Chromed drive belt cover
• Extra wide front brake and clutch levers provide a quality feel.
• Steering lock is integrated into the main ignition switch for extra convenience.
•Handy, under seat helmet holder
• Low-maintenance, sealed battery ensures fuss-free, dependable starting.
• Self-cancelling turn signals feature stylish clear lenses.
• Conventional passenger footpegs
• High output 460 watt generator
• Electric fuel pump

2013 Yamaha V-Star 1300 Deluxe
USA Specifications

US MSRP Price: $13,690 (Deep Blue) USD

Engine
Type 80-cubic-inch (1304cc) liquid-cooled V-twin; SOHC, 4 valves/cylinder
Bore x Stroke 100.0 mm x 83.0 mm
Compression Ratio 9.5:1
Fuel Delivery Fuel injection
Ignition TCI: Transistor Controlled Ignition
Transmission 5-speed; multiplate wet clutch
Final Drive Belt

Chassis
Frame Double Cradle
Suspension / Front 41mm Telescopic fork; 5.3-in travel
Suspension / Rear Single shock; 4.3-in travel
Brakes / Front Dual hydraulic disc, 298mm
Brakes / Rear Hydraulic disc, 298mm
Tires / Front 130/90-16M/C 67H
Tires / Rear 170/70B-16M/C 75H
Wheels 7-spoke aluminum

Dimensions
Length 98.0 in
Width N/A
Height 45.1 in
Seat Height 27.2 in
Wheelbase 66.5 in
Fuel Capacity 4.9 gal
Fuel Economy** N/A
Wet Weight*** N/A

Other
Warranty 1 Year (Limited Factory Warranty)

* Prices and specifications subject to change without notice. Please read your Owner's Manual and all labels before operation.
** Fuel economy estimates are based on US EPA exhaust emission certification data obtained by Yamaha. Your actual mileage will vary depending on road
conditions, how you ride and maintain your vehicle, accessories, cargo, and operator/passenger weight.
*** Wet weight includes the vehicle with all standard equipment and all fluids, including oil, coolant (as applicable) and a full tank of fuel.

2013 Yamaha V-Star 1300 Deluxe
Canadian Specifications

Canada MSRP Price: $14,499 CDN

Engine Liquid-cooled, SOHC , 8-valve, 60°, V-twin
Displacement 1,304cc (80 cubic inch)
Bore and Stroke 100 x 83mm
Compression Ratio 9.5:1
Maximum Torque 11.3 kg-m (81.8 ft-lb) @ 4,000 rpm
Fuel Delivery Mikuni dual bore 40mm F.I.
Estimated Fuel Consumption* 18kpl / 51mpg (Imp.)
Ignition / Starting TCI / Electric
Transmission 5-speed
Final Drive Belt

Suspension (Front) 41mm fork
Suspension (Rear) Adjustable link Monocross
Brakes (Front) Dual 298mm discs
Brakes (Rear) 298mm disc
Tires (Front) 130/90-16
Tires (Rear) 170/70-16

Length 2,490mm (98")
Wheelbase 1,690mm (66.5")
Seat Height 690mm (27,2 ")
Fuel Capacity 18.5 litres (4.1 imp. gallons)
Colour(s) Purplish Metallic Blue

± Fuel economy estimates are based on US EPA exhaust emission certification data obtained by Yamaha and converted into Canadian measurements. Your actual mileage will vary depending on road condition, how you ride, maintain your vehicle, accessories, cargo and operator/passenger weight.

Specifications, appearance, and price of product are subject to change without notice.

* MSRP does not include freight, PDI (Pre Delivery Inspection), pre-rigging (boats), or taxes. Dealer may sell for less. See your local dealer for out the door pricing.



Motorcycle Insurance Information
allstate.com
Check Out a Typical Allstate Motorcycle Insurance PolicyInsurance PolicyInsurance Policy
We'll show what coverages may be available and how to get the personalized protection you need.

Even if you've been riding for years, it's a good idea to take a close look at your motorcycle insurance coverage. Things change, and chances are you've got a lot to look out for.

Explore features available from Allstate
Our motorcycle insurance coverage is packed with ways to help turn a really bad day around.

Allstate offers great coverage for gas-friendly scooters
For people who have turned to scooters for gas savings -- or just because they're fun -- you'll be happy to know that Allstate offers coverage for those, too. No matter the engine size, gas or electric, Allstate provides scooter insurance for most street-legal vehicles, offering the same great protection and discounts as our motorcycle coverage.

To get your free quote, call 1-877-379-BIKE (1-877-379-2453) today.

Yamaha Pictures 2013 Raptor YFZ450R ATV review and specifications

2013 Yamaha Raptor YFZ450R
ATV pictures, review and specifications

The top of the podium awaits - The difference between racing and winning, the YFZ450R boasts the ideal mix of race-inspired power, handling and overall performance.

The 2013 Yamaha YFZ450R is a pure bred race machine. With a fuel injected 449cc 5-valve engine, an incredibly strong hybrid chassis with motocross-wide-track stance and super premium triple adjustable long travel suspension, the 2013 450R was made for the motorcross track.

2013 Yamaha Raptor YFZ450R Yamaha pictures. 480x360 pixels

2013 Yamaha Raptor YFZ450R Yamaha pictures 03 2013 Yamaha Raptor YFZ450R Yamaha pictures 02
2013 Yamaha Raptor YFZ450R Yamaha pictures 05 2013 Yamaha Raptor YFZ450R Yamaha pictures 04


2013 Yamaha Raptor YFZ450R
USA Specifications

USA MSRP: $8,599 (Team Yamaha Blue/White) Available from July 2012; $8,599 (White w/Graphics Kit) Available from July 2012

Engine
Type 449cc, 4-Stroke Single, Liquid Cooled w/Fan, Titanium 5-Valve DOHC
Bore x Stroke 95mm x 63.4mm
Compression Ratio 11.6:1
Fuel Delivery Yamaha Fuel Injection (YFI), 42mm
Ignition Digital TCI: Transistor Controlled Ignition
Starting System Electric
Transmission 5-Speed Manual Clutch
Drive Train 2WD; Sealed O-Ring Chain, Eccentric Adjustment

Chassis
Suspension / Front Independent double wishbone, w/Kashima coated piggy back shocks, High/Low speed compression, rebound and threaded preload adjustment, 9.8-in travel
Suspension / Rear Cast aluminum swingarm w/piggyback High/Low speed compression, rebound and threaded preload adjustment, 11.0-in travel
Brakes / Front Dual ventilated hydraulic disc, twin piston
Brakes / Rear Wave-style ventilated hydraulic disc, twin piston
Tires / Front AT21x7-10 Radial
Tires / Rear AT20x10-9 Radial

Dimensions
L x W x H 70.7 x 48.8 x 41.9 in
Seat Height 31.9 in
Wheelbase 50.0 in
Ground Clearance 4.5 in
Fuel Capacity 2.6 gal
Wet Weight 403 lb

Other
Lighting Dual 30W Krypton multireflector Headlights and 3.9/0.5W LED Brake light
Warranty 6 Month (Limited Factory Warranty)

2013 Yamaha Raptor YFZ450R
Canada Specifications
Canadian MSRP: $10,999 CDN

Engine 4-Stroke Single, Liquid Cooled w/ Fan, Titanium 5-Valve DOHC
Displacement 449cc
Bore and Stroke 95mm x 63.4mm
Compression Ratio 11.6:1
Carburetion Yamaha Fuel Injection (YFI) , 42mm
Ignition TCI (Digital)
Starting Electric
Transmission 5-Speed, Manual Clutch
Final Drive 2WD; Sealed O-Ring Chain, Eccentric Adjustment

Suspension (Front) Independent Wide-Arc Double Wishbone, w/ 9.8" of travel. Kashima coated Piggy Back shocks featuring High/Low Speed Compression, Rebound and Threaded Preload Adjustment
Suspension (Rear) Cast Aluminum Swing Arm, w/ 11.0" of travel. Piggy Back shock featuring High/Low Speed Compression, Rebound and Threaded Preload Adjustment.
Brakes (Front) Dual Ventilated Hydraulic Disc , Twin Piston Calipers
Brakes (Rear) Wave Style Ventilated Hydraulic Disc, Twin Piston Caliper
Tires (Front) AT21x7-10 Dunlop KT351 Radial
Tires (Rear) AT20x10-9 Dunlop KT356 Radial

Length 1,795mm (70.7")
Width 1,240mm (48.8")
Height 1,065mm (41.9")
Wheelbase 1,270mm (50.0")
Ground Clearance 115mm (4.5")
Seat Height 810mm (31.9")
Wet Weight 184kg (405 lb)- ready to ride full of fuel and oil
Fuel Capacity 10.0 L
Colour(s) Team Yamaha Blue
Warranty 6 months (unlimited mileage)

Specifications, appearance, and price of product are subject to change without notice.
2013 Yamaha Raptor YFZ450R Review

Race-spec suspension for superior handling. Hard hitting 449cc engine for awesome power output. Add in fuel injection, and Yamaha's championship legacy keeps you on track.

Designed to dominate the race track, the YFZ450R is sure to draw many checkered flags.

With a wide-track chassis and long travel suspension, the YFZ450R provides incredible stability, confidence and control. The powerful 5-valve 449cc race engine is fuel injected with many components developed from our motocross bikes including the cylinder, cylinder head, cams and crank designs. The engine is cradled by a hybrid aluminum chassis for optimized strength and rigidity, making the YFZ450R the most capable racer we've ever developed.

2013 Yamaha Raptor YFZ450R Key Features:

• The prestigious “ATV of the Year” Award from ATV Sport Magazine. “Best in Class” from ATV/SxS Illustrated. Winner of shootout after shootout. The YFZ450R took ’em all – in its first model year, right out of the starting gate. This is one amazing ATV!
• In ATV motocross, great power output doesn’t mean much without superior handling. YFZ450R delivers! The stance of the YFZ450R is motocross ready. The weldless frame is designed from lightweight aluminum, with a tension-steel bottom frame that lets the engine sit lower for excellent mass centralization. Suspension components have more travel, carefully chosen for best performance, and the front shock bodies feature Kashima coating for even smoother operation.
• Fatigue can sometimes be a racer’s worst competition. That’s why the YFZ450R’s designers made this ATV so comfortable. It boasts racer friendly ergonomics with plenty of room to hang off in the corners, and the seat is padded just right to be more comfortable regardless of riding position. Handlebars are 4-position adjustable, too, so every rider can choose the best position, and the throttle has been designed for all day comfort.
• This 449cc engine uses titanium five-valve cylinder head technology, with a camshaft designed just for this machine to deliver abundant low to midrange torque for performance where you can really use it to take the lead – while still maintaining a super strong top end to let you pull away from the pack.
• The YFZ450R incorporates Yamaha Fuel Injection for precise fuel delivery. With big 42mm Mikuni® throttle body and 12-hole injector, this system provides exceptional atomization of the fuel for maximum power. The system also includes ISC (Idle Speed Control) for easy, reliable start-up and warming.
• This ATV is designed to make race prep easy. Body panels come off easily for service; there’s no need to remove the battery or other components to get the fenders off. The aluminum frame is bolted together, rather than welded, for maximum durability. And the oil tank is integrated with the crankcase so it’s easier to service the engine.

2013 Yamaha Raptor YFZ450R Features and Benefits:

• The fuel-injected 449cc engine has superb power characteristics. Power delivery is smooth and strong off the line with lots of low and mid range where you need it.
• The crankcase holds a crankshaft that’s ready to handle the increased balance ratio, as well as a counterbalancer for superior vibration control. The crankcase also houses the oil tank, which helps to centralize mass for unmatched handling and makes maintenance easier.
• Camshafts are designed to maximize the torque available in the low and mid ranges.
• Fuel injection uses a 12-hole injector that provides exceptional atomization of the fuel for maximum combustion efficiency and power delivery. The system also uses a big, 42mm Mikuni® throttle body and includes ISC (Idle Speed Control) for easy, reliable start-up and warming.

Chassis/Suspension:

• The chassis is very spacious, allowing room for even an aggressive racer to move around during the moto, and the ATV’s body panels that the rider contacts during operation are of a softer plastic material for greater comfort. The seat is narrow in the front, yet wide and padded in the rear to provide a more comfortable ride, even when hanging off on the side of the seat in a turn.
• The wheel has been designed with the inner lip rolled in. This increases the rigidity, allowing a reduction in weight while maintaining strength.
• Wheels are set motocross-spec wide, near the maximum allowable 50 inches, for great cornering ability. The Dunlop® tires are grippy with a great pattern for cornering, and at 20 inches in the rear and 21 inches in the front, provide much better ground clearance than the competition. That makes the YFZ450R fun to ride off-road, too.
• Handlebars are mounted on 4-way clamps for exceptional adjustability. There are two sets of holes in the handlebar crown, and eccentric clamps so the rider can choose the standard setting, 10mm or 20mm forward, or 10mm back.
• Foot pegs are a generous 2.6 inches wide, something riders will appreciate every time they want to get up on the pegs, with good kick-up on the ends for solid footing.
• The frame is aluminum for lightweight, except for the frame member under the engine. Here tensioned steel is used for its combination of strength and thinness. This allowed the designers to sit the engine lower overall for excellent mass centralization for unmatched handling. The aluminum frame is bolted together, rather than welded, for maximum durability.
• The front frame is noticeably narrow at the A-arm mounting points. This dramatically reduces changes in camber as the long A-arms travel through their full range of motion. The front 44mm KYB® shocks have Kashima coating for smooth operation with superb bump absorption and excellent anti-bottoming characteristics. The 9.8 inches of wheel travel means this racer is up to even the most challenging tracks.
• The rear swingarm is crafted of strong, gravity-fed aluminum, and it’s matched to a fully adjustable 46mm KYB® piggyback shock absorber for excellent handling. Rear wheel travel is 11.0 inches for comfort even on tough terrain.
• For excellent stopping ability, YFZ450R features dual front hydraulic disc brakes and a trick looking, lightweight wave-type rear rotor.

Additional Features:

• The throttle lever requires low effort, and it’s very comfortable to use. That means less fatigue during all-day riding.
• The instrumentation is all business. The discrete panel on the fender in front of the rider gives vital indicators about low fuel, coolant temperature, check engine, and neutral gear via a straightforward LED display.


Motorcycle Insurance Information
www.statefarm.com

State Farm® has offered motorcycle insurance for 40 years
Protection for the Open Road
The open road is always an adventure. You never know what might be around the bend. So make sure you're prepared for whatever the road has in store for you, with a State Farm motorcycle insurance policy.

Motorcycles Covered by State Farm
We will consider any factory-built motorcycle, motorscooter, and other two or three-wheel vehicles including minibikes and trail bikes licensed for use on public roads.

Available Coverage Options
= Bodily injury to someone else or property damage that you accidentally caused while riding your motorcycle. =
= Bodily injury to yourself because of an accident with an uninsured motorist. =
= Damage to your motorcycle caused by an accident. =
= Theft, fire, vandalism, and other losses even while your motorcycle is in storage for the winter. =
= Customization work, such as paint or upgraded components =
= Attached side cars. =

Note: This is only a general description of available coverages and is not a statement of contract. All coverages are subject to policy provisions and applicable endorsements. For further information on motorcycle insurance see a State Farm Agent.


.

Followers

RSS Feed
