2007 YAMAHA Grizzly 700FI 4x4 Automotic ATV pictures

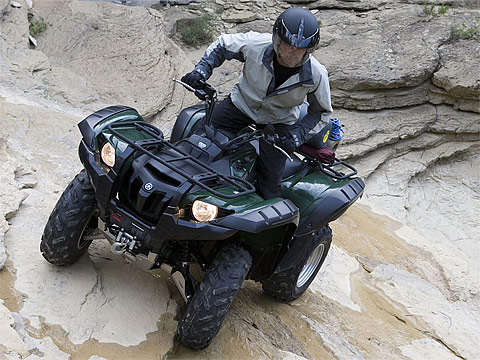

2007 YAMAHA Grizzly 700 FI 4x4 Automotic

ATV pictures, review and specifications

2007 YAMAHA Grizzly 700 FI 4x4 Automotic

Click Thumbnail to download (size 1600 x 1200 pixels)

Specifications

Engine
* Engine Detail : 686cc liquid-cooled w/fan, SOHC four-stroke single; 4-valve
* Engine Capacity : 686cc
* Valve Spec : SOHC
* Type : four-stroke
* Cooling : liquid-cooled
* No of Cylinders : single-cylinder
* Bore / Stroke : 102.0 x 84.0mm
* Compression Ratio : 9.2:1
* Lubrication : Wet sump
* Ignition : 32 Bit ECU

Gearbox
* Transmission : Yamaha Ultramatic® V-belt/H, L, N, R, P,Yamaha On-Command® pushbutton 3-way locking differential, 2WD, 4WD, locked 4WD;
* Final Drive : Drive Shaft

Fuel
* Fuel System : Yamaha Fuel Injection (YFI), 44mm
* Fuel Tank Capacity (Gal) : 5.3
* Fuel Tank Capacity (Liters) : 20

Dimensions and Weight
* Length (Inches) : 81.3
* Width (Inches) : 46.5
* Height (Inches) : 48.8
* Seat Height (Inches) : 35.6
* Ground Clearance (Inches) : 11.8
* Wheelbase (Inches) : 49.2
* Dry Weight (Lbs) : 600
* Length (mm) : 2065
* Width (mm) : 1180
* Height (mm) : 1240
* Seat Height (mm) : 905
* Ground Clearance (mm) : 275
* Wheelbase (mm) : 1250
* Dry Weight (Kg) : 274

Suspension, Brakes and Tires
* Engine Braking : All wheel
* Suspension - Front : Independent double wishbone, 7.1” travel w/5-way preload adjustment
* Suspension - Rear : Independent double wishbone, 9.5” travel w/5-way preload adjustment
* Brakes - Front : Dual hydraulic disc
* Brakes - Rear : Dual hydraulic disc
* Tires - Front : AT 25 x 8-12 w/aluminum wheels
* Tires - Rear : AT 25 x 10-12 w/aluminum wheels

Carry Racks
* Rack Capacity - Front (Lbs) : 99
* Rack Capacity - Front (Kg) : 45
* Rack Capacity - Rear (Lbs) : 187
* Rack Capacity - Rear (Kg) : 85

Towing Capacity
* Towing Capacity (Lbs) : 1212
* Towing Capacity (Kg) : 550

Insrumentation and Lighting
* Instumentation : Digital LCD multifunction display: speedometer, odometer, dual trip, hour meter, clock, fuel, gear position
* Lighting : Dual 35W Halogen multireflector headlights & 21/5W brake light

Available Colors
* Colors : Blue, Green , Red

2007 YAMAHA Raptor 700R ATV pictures, review, specifications

2007 YAMAHA Raptor 700R

ATV pictures, review and specifications

2007 YAMAHA Raptor 700R

Click Thumbnail to download (size 1600 x 1200 pixels)

2007 Yamaha Raptor 700R

Secifications
M.S.R.P. * $7,199.00

DIMENSIONS
LENGTH 72.6 in.
HEIGHT 44.5 in.
WIDTH 46.1 in.
WEIGHT 396 lbs.
GROUND CLEARANCE 4.4 in.
WHEELBASE 50.4 in.
SEAT HEIGHT 32 in.

ENGINE
ENGINE 4-stroke single, SOHC, 4-valve
DISPLACEMENT 686 cc
BORE X STROKE 102 x 84 mm
COMPRESSION RATIO 9.2:1
CARBURETION Yamaha Fuel Injection (YFI), 44 mm
FUEL CAPACITY 2.9 gal.
IGNITION Digital TCI with 16-Bit ECU
STARTING Electric
CLUTCH Manual
COOLING Liquid-cooled with fan

DRIVETRAIN
TRANSMISSION 5-speed with reverse

BRAKES/WHEELS/TIRES
BRAKES Front: Dual hydraulic discs, twin pistons
Rear: Hydraulic disc, self adjusting park brake function
TIRES Front: AT21 x 7-10 radial
Rear: AT20 x 10-9 radial

OPERATIONAL
SUSPENSION Front: Independent double wishbone, 9.1 in. with 5-way preload adjustment
Rear: Cast aluminum swing arm, 10.1 in. with rebound, compression and threaded preload adjustment.

2008 YAMAHA Banshee 350 ATV pictures, review , specifications

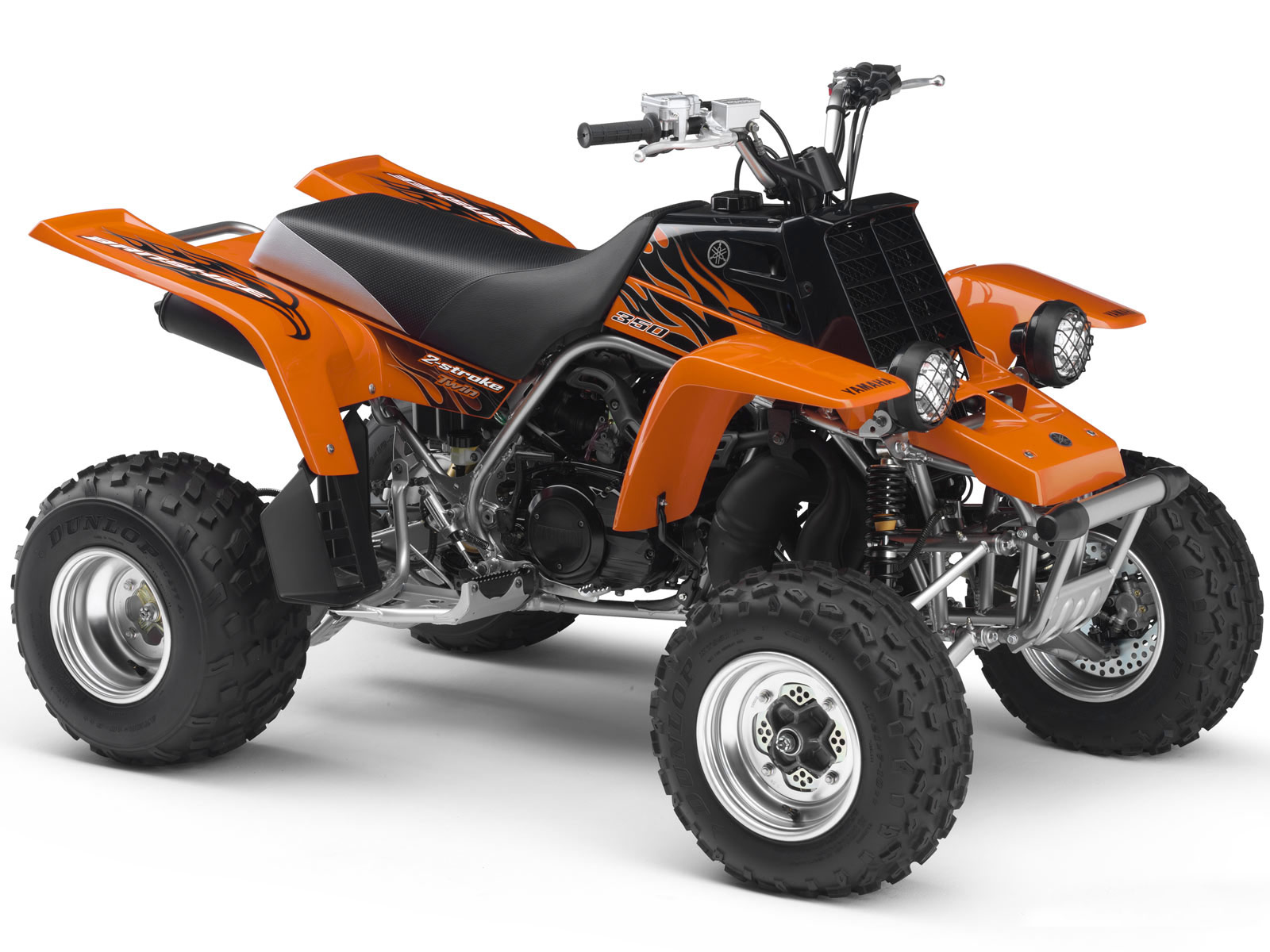

2008 YAMAHA Banshee 350

ATV pictures, review and specifications

2008 YAMAHA Banshee 350

Click Thumbnail to download (size 1600 x 1200 pixels)

Specifications

Manufacturer: Yamaha
Year: 2008
Model: Banshee 350
Category: Sport
Price: 8049.00
Warranty (months): 6
Engine type: 2-stroke
Cylinder: V2
Valvetrain: Reed-valve
Cooling system: Liquid
Displacement (cc): 347.0
Bore (mm): 64.0
Stroke (mm): 54.0
Compression ratio: 6.5:1
Ignition: CDI
Starter: Kick
Gearbox speed: 6
Gearbox operation: Manual
Drive system: 2WD
Final drive: O-ring chain
Front suspension type: Double wishbone
Rear suspension type: Monocross
Front brakes: Dual hydraulic discs
Rear brakes: Hydraulic disc
Front tires width (inch): 21
Front tires height (inch): 7
Front tires inner diameter (inch): 10
Rear tires width (inch): 20
Rear tires height (inch): 10
Rear tires inner diameter (inch): 9
Length (mm): 1855
Width (mm): 1100
Height (mm): 1080
Weelbase (mm): 1280
Seat height (mm): 800
Ground clearance (mm): 135
Weight (kg): 175
Fuel capacity (L): 12.0
Colour(s): Custom Orange/Black

2007 YAMAHA Tesseract Concept ATV pictures, review, specifications

2007 YAMAHA Tesseract Concept

ATV pictures, review and specifications

2007 YAMAHA Tesseract Concept

Click Thumbnail to download (size 1600 x 1200 pixels)

Specifications:

Engine and transmission
Engine type: 2 cylinders, 4-stroke, 60° V-twin
Cooling system: Water cooled
Throttle: Cable operated
Valves
Valve train: SOHC, variable
Valves per cylinder: 4
Fuel and ignition
Sparks per cylinder: 1
Fuel supply system: Fuel injection
Ignition type: TCI (Transistor Controlled Ignition)
Engine mounting: Transverse
Lubrication system: Wet sump
Gear box: Manual
Clutch: Wet, cable operated
Final drive: Shaft
Starter: Electric

Dimensions
Physical measures
Length: 2115 mm
Width: 720 mm
Height: 1065 mm

Chassis and suspension
Frame type: steel, Trellis frame
Front
Suspension: Hub-center steering
Brake: Twin Disk
Tire: 120 / 60 R17
Rear
Suspension: mono shock, Mono arm
Brake: Disk
Tire: 160 / 60 R17

Other
ABS available: No
Number of riders: 1 person

2006 YAMAHA Raptor 700R ATV pictures, specifications

2006 YAMAHA Raptor 700R

ATV pictures, review and specifications

2006 YAMAHA Raptor 700R

Click Thumbnail to download (size 1600 x 1200 pixels)

Specifications

Model Type: Sport
BASE MSRP(US) $7,249.00
Warranty 6

Engine:
Engine Type: Single-Cylinder
Cylinders : 1
Engine Stroke: 4-Stroke
Valve Configuration: SOHC
Displacement (cc/ci): 686 / 41.9
Carburetion Type : Fuel Injected

Transmission:
Transmission Type: Manual
Number Of Speeds: 5
Primary Drive (Rear Wheel): Chain
Reverse: Yes

Wheels & Tires:
Front Tire (Full Spec): Dunlop® AT 21 X 7-10
Rear Tire (Full Spec): Dunlop® AT 20 X 10-9

Brakes:
Front Brake Type: Dual Hydraulic Disc
Rear Brake Type: Hydraulic Disc

Technical Specifications:
Wheelbase (in/mm): 50.4 / 1280.2
Dry Weight (lbs/kg): 396 / 179.6
Fuel Capacity (gal/l): 2.9 / 11

Seats:
Seat Height (in/mm): 32 / 861.1
Number Of Seats: 1

Drive Line:
Driveline Type: 4X2
Number Of Driveline Modes: 1

Lights:
Halogen Headlight (s): Standard

2006 YAMAHA Banshee 350 ATV pictures, review

2006 YAMAHA Banshee 350

ATV pictures, review and specifications

2006 YAMAHA Banshee 350

Click Thumbnail to download (size 1600 x 1200 pixels)

Specifications

MSRP:
$6,449 (50th Anniversary Yellow/Black)
$6,449 Special Edition (Black Metallic/Stardust Silver)
$6,199 (Team Yamaha Blue)
$6,199 (White/Silver)

Engine
Type: 347cc, 2-Stroke Twin, Liquid Cooled, Reed Valve
Bore x Stroke: 64mm x 54mm
Compression Ratio: 6.5:1
Fuel Delivery: Dual Mikuni 26mm
Ignition: CDI
Starting System: Kick
Transmission: 6-Speed Manual Clutch
Drive Train: 2WD; Sealed O-Ring Chain

Chassis
Suspension / Front: Independent Double Wishbone, 9.1” w/ 5-way Preload Adjustment
Suspension / Rear: Swing Arm, 8.7” w/ Rebound, Compression and Threaded Preload Adjustment
Brakes / Front: Dual Hydraulic Disc
Brakes / Rear: Hydraulic Disc
Tires / Front: AT21 x 7-10
Tires / Rear: AT20 x 10-9

Dimensions
L x W x H: 73.0” x 43.3” x 42.5”
Seat Height: 31.5”
Wheelbase: 50.4”
Ground Clearance: 5.3”
Fuel Capacity: 3.2 Gallons
Dry Weight: 386 Lbs.

Other
Lighting: Dual 30W Krypton Multi-reflector Headlights & 21/5W Brake light
Warranty: 3 Month (Limited Factory Warranty)

.
